Description

• 【2.4GHz WiFi Bridge/Repeater】Industrial 2.4GHz Mini WiFi Bridge/Repeater, can achieve WiFi to Wired or Wired to WiFi function（Ethernet to WiFi or WiFi to Ethernet convert); WiFi rate:300Mbps; Support WiFi 802.11b/g/n.
• 【Support Multiple application】1. WiFi repeater, 2. WiFi bridge ( IP layer or MAC layer transparent transmission), 3. WiFi-AP hotspots. Realize WiFi smart bridge function, WiFi to wired, wired to WiFi, smart exchange.
• 【Point-to-Point Transmission】Maximum can be up to 100 meters when without obstacles and small data, less than 50 meters when used for video transmission, 2 X 1.5dBi internal antennas. It’s a good partner for monitoring, electronic scales, DVR, IP camera, medical devices, IoT devices, video transmission, industrial PLC, PS3, network Printer, robot, doll machine, and more network applications.

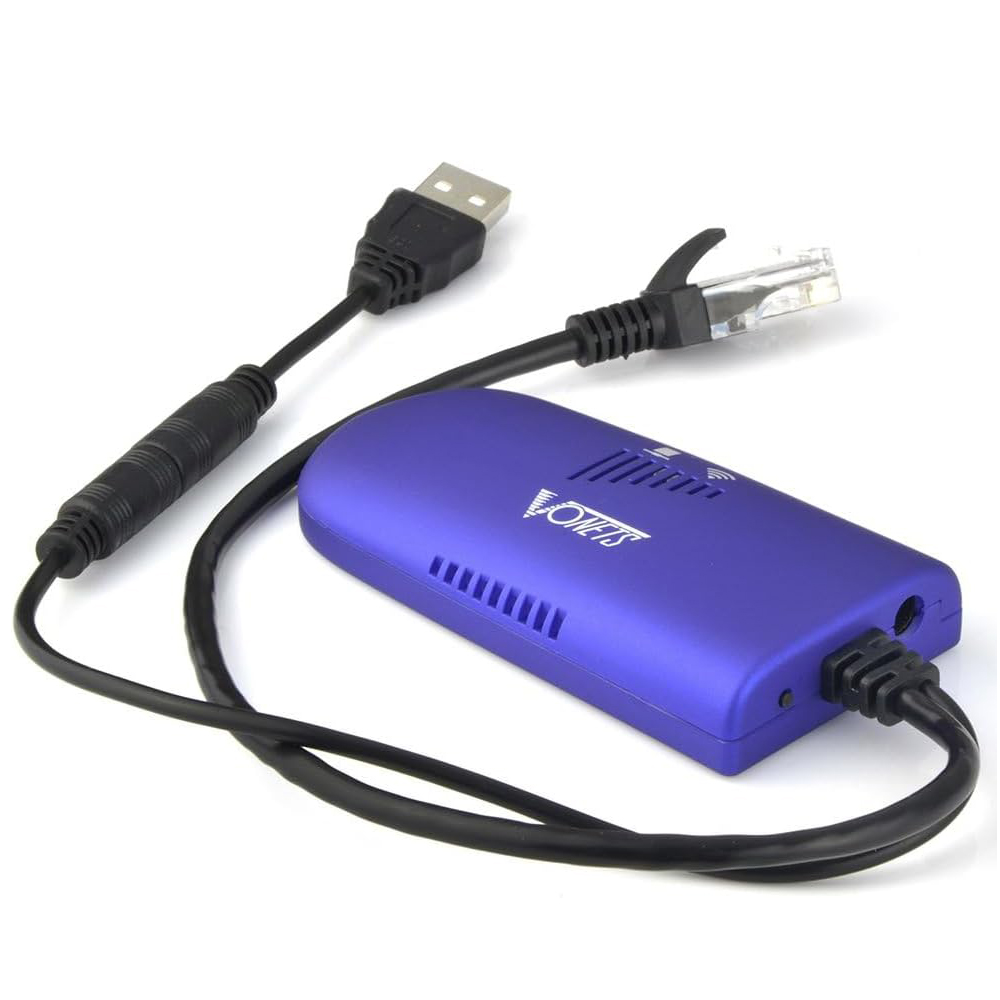

• 【Configuration Parameters】Support wide voltage DC 5V-15V(Typical 5V/1A, ripple less than 100mV), the average power consumption is less than 2.5W. Equipped with a 30cm power cable, one male DC port, one male USB port, one female DC port of the parallel connection, and one 10/100Mbps adaptive Ethernet port.
• 【IP/MAC Layer Transparent】Support IP layer transparent transmission and MAC layer transparent transmission in two bridge modes, IP layer transparent transmission (factory default), which can meet most of the bridge applications; MAC layer transparent transmission, which can transparent transmission the MAC layer(link layer) and above of all data, including IP layer data(such as Cisco AP, Hikvision surveillance system).
